Adjustable solar mounting structures
Adjustable solar mounting structures are engineered frameworks made from durable materials such as aluminum alloys, galvanized steel, and stainless steel components. They provide a secure connection between solar panels and the installation surface, while allowing the panel tilt angle to be modified.
The main purpose of an adjustable mounting system is to optimize the angle between the solar module and the sun. Since the sun’s position changes throughout the year, adjusting the panel angle can improve sunlight absorption and increase overall photovoltaic system performance.
An adjustable solar mounting structure consists of several critical components:

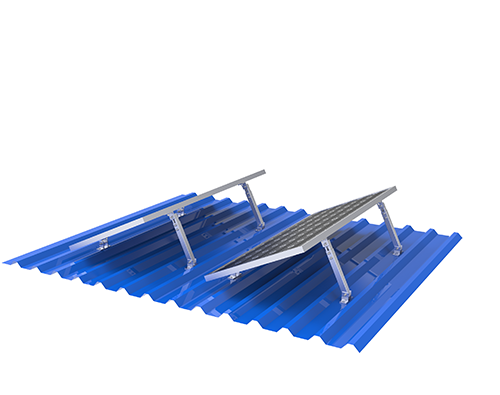

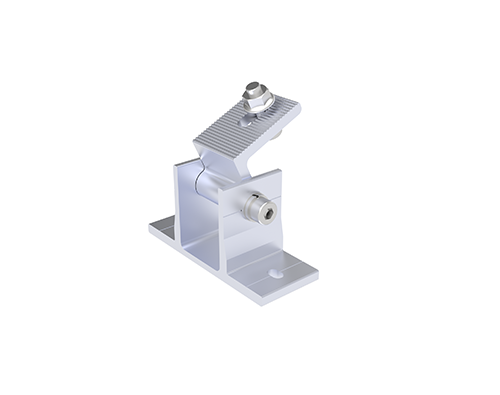

Tilt brackets are the main elements that enable angle adjustment. They are designed with multiple adjustment holes or sliding mechanisms, allowing solar panels to be positioned at different tilt angles.
Typical adjustment ranges include:
10°–30° for many rooftop systems
Custom angles for specific geographic locations
Rails and Support Beams
Solar rails provide the foundation for attaching PV modules. Aluminum rails are commonly used because they are:
Lightweight
Corrosion resistant
Easy to install
Strong enough to withstand wind and snow loads
The rails connect solar panels together and distribute mechanical loads evenly across the structure.

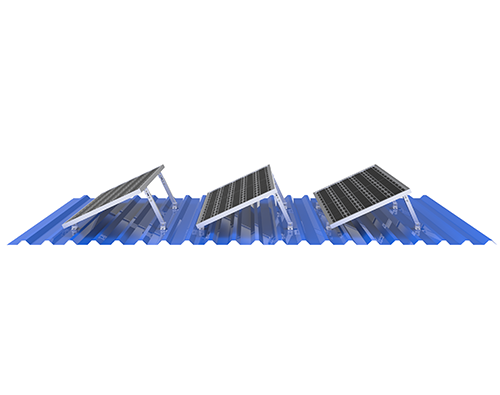

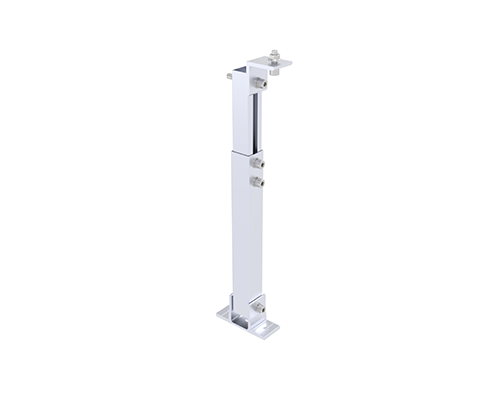

Rear support legs allow installers to raise or lower the back side of the solar panel array. By changing the rear leg height, the tilt angle can be adjusted without replacing the mounting structure.
Mid clamps and end clamps secure solar modules to the mounting rails. Stainless steel bolts and fasteners are typically used to provide long-term durability and resistance against outdoor conditions.
The biggest advantage of adjustable mounting systems is improved energy production. By changing the panel angle according to the season, solar modules can receive more direct sunlight.
Adjustable systems are suitable for different environments because the tilt angle can be customized b
This flexibility makes them ideal for projects across different regions.
Adjustable structures often simplify maintenance activities. Technicians can modify panel angles for easier access during:
Cleaning
Inspection
Repairs
Electrical maintenance
For ground-mounted systems, foundations such as ground screws, concrete foundations, or pile-driven posts are installed first. For rooftop systems, mounting bases are secured to the roof structure.
Adjustable brackets and support legs are assembled according to the required tilt range. The adjustment mechanism should be securely tightened to prevent movement caused by wind loads.
PV modules are placed on the rails and fixed using clamps. Electrical connections are completed after mechanical installation.
6. Adjusting the Tilt Angle
After installation, the solar panel angle is adjusted based on the project design requirements. Some systems allow future seasonal adjustments, while others are set once during installation.
Conclusion
Adjustable solar mounting structures provide a flexible and efficient solution for maximizing solar energy generation. By allowing panel angles to be optimized, these systems help improve photovoltaic performance while offering installation versatility across different environments. Although they may require a higher initial investment than fixed mounting systems, their ability to increase energy output and adapt to changing conditions makes them a valuable choice for modern solar projects.
