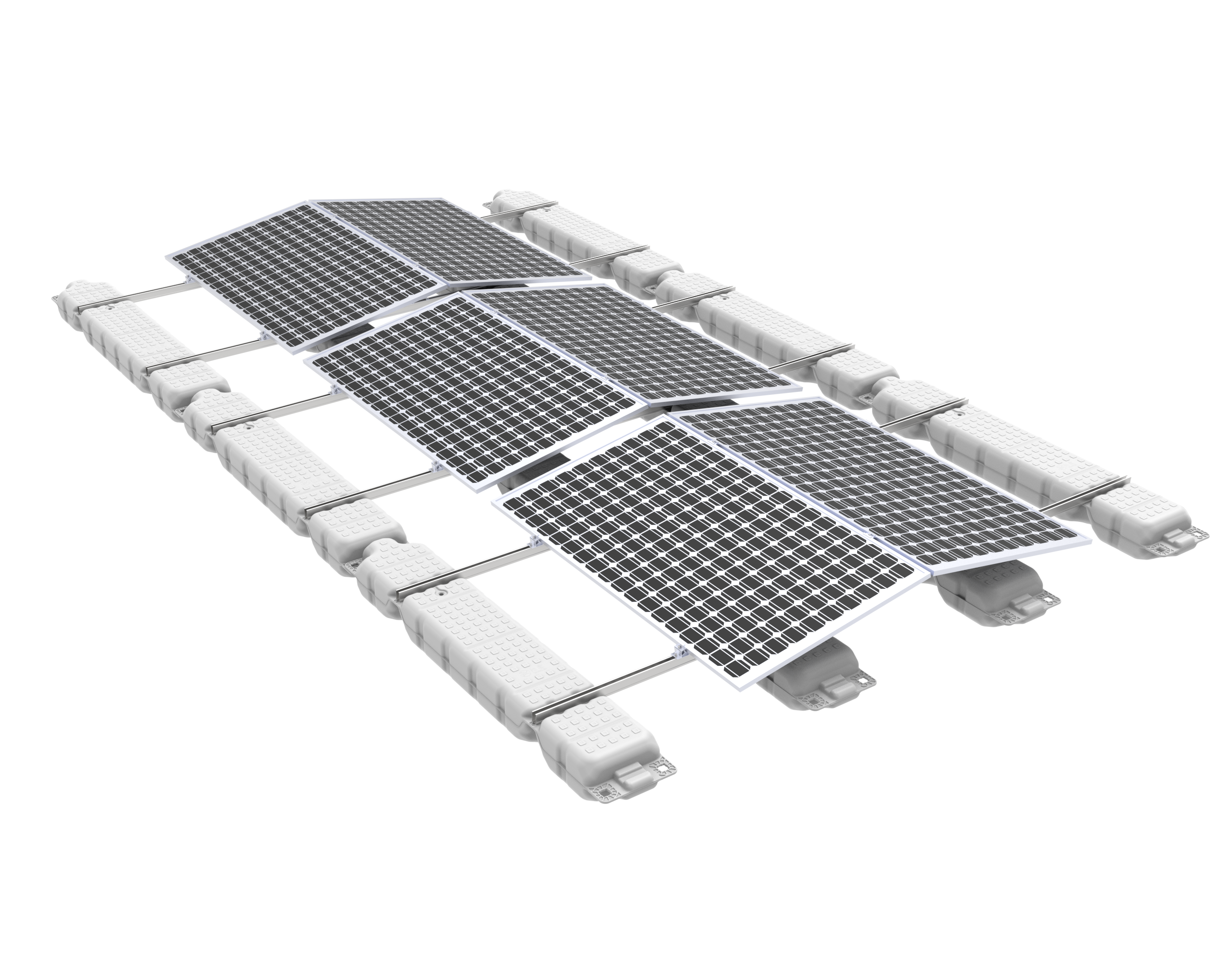

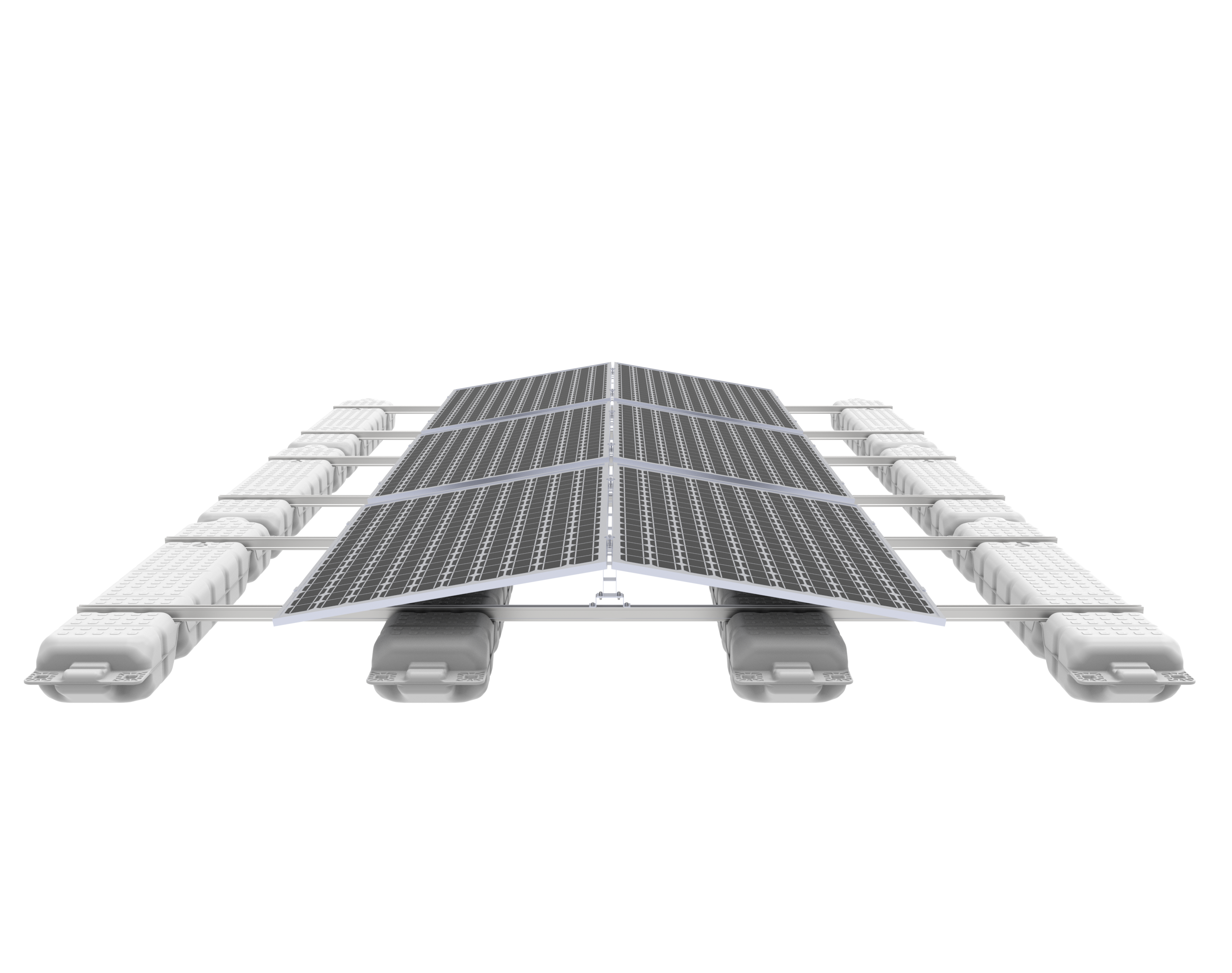

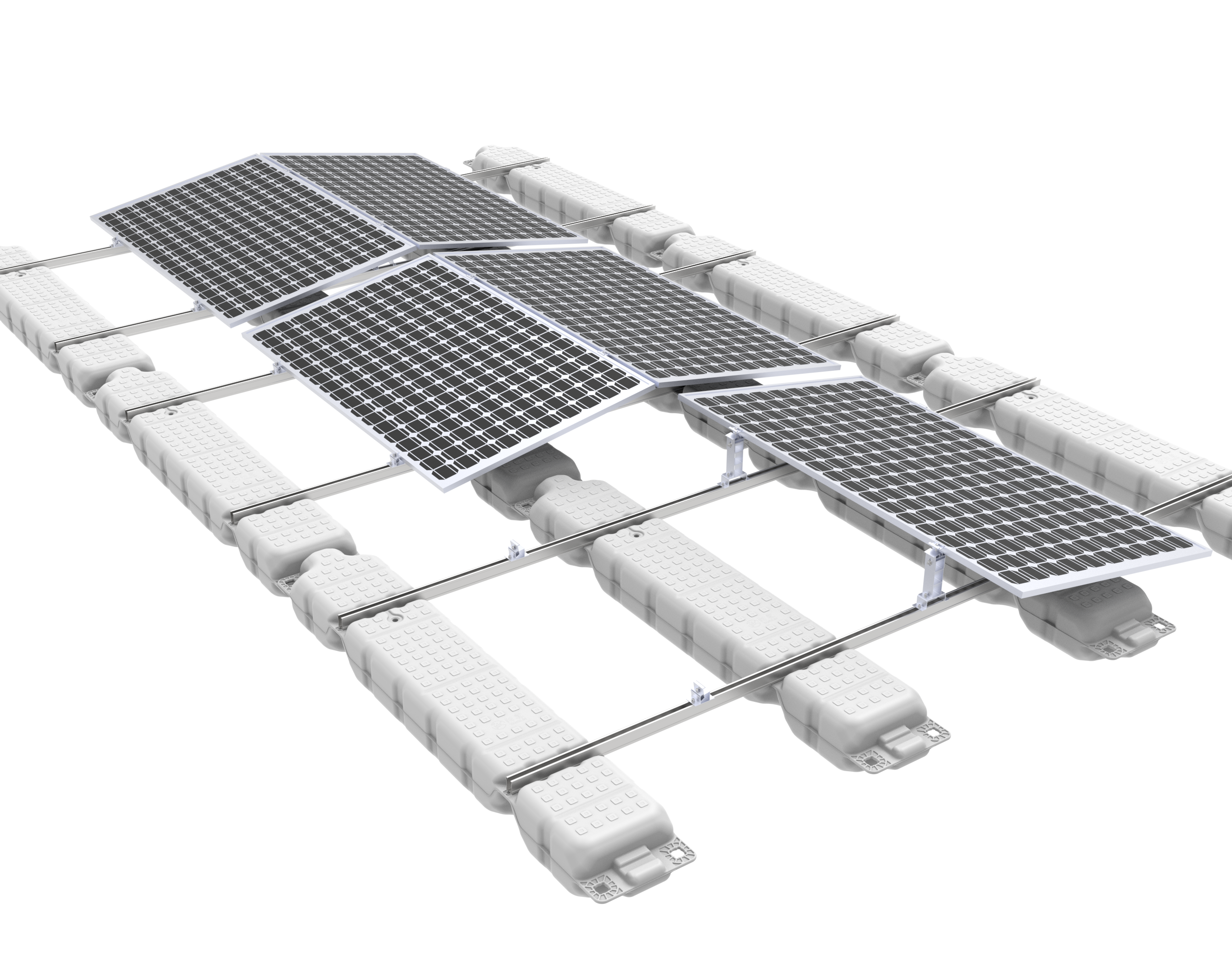

The Floating Solar Mounting System
The Floating Solar Mounting System is designed for industrial applications on water areas, offering high energy conversion and long service life. Made from durable anodized aluminum, it supports a snow load of 1.4kn/ms and wind speeds up to 60m/s. Its customizable tilt angle ensures optimal solar panel performance. Easy installation reduces labor costs, while a 10-year warranty guarantees reliability. Flexible MOQ and fast sample service streamline procurement, making it ideal for renewable energy projects.
We will make unremitting effort to innovate,promote the PV industry,are endeavor or make green energy cheap.
Floating Structure (The Pontoon/Hull):
This is the foundation that provides buoyancy. The two primary designs are:
Pontoon-Based (Modular Floats): Individual, often HDPE (High-Density Polyethylene) floats are connected like a large raft. Each float holds one or a few panels. This is the most common design due to its modularity and ease of transport/installation.
Membrane-Based: A flexible, reinforced plastic membrane is stretched across a floating frame. The panels are mounted on top of this membrane. This design can cover large areas more continuously.
Mounting Structure:Similar to ground mounts, this is the frame that holds the panels at the correct angle. It is either integrated into the float or attached on top of it. Materials are typically aluminum or hot-dip galvanized steel for high corrosion resistance.
