PV Ground Screws for Solar Mounting Systems
PV ground screws, also known as helical piles or screw anchors, are a widely used foundation solution in solar ground mounting systems. They offer a strong, stable, and eco-friendly alternative to traditional concrete foundations for solar PV installations. These components are especially popular in utility-scale and commercial solar farms, as well as residential solar projects that require secure, quick, and adaptable ground support.
Key Features of PV Ground Screws
No Concrete Required
Ground screws eliminate the need for digging and concrete pouring, significantly reducing installation time and labor costs.Versatile Ground Compatibility
Suitable for a wide range of soil types including clay, sand, gravel, and loamy terrain. Some models are even designed to perform well in rocky or sloped areas.Strong Load-Bearing Capacity
Manufactured using hot-dip galvanized steel (usually Q235 or Q355), PV ground screws offer excellent corrosion resistance and high tensile and compressive strength.Fast and Simple Installation
Installation is done using specialized screw-driving machines or hand-held drivers, which spin the screw into the ground without disturbing the surrounding soil much. This allows for rapid deployment with minimal site preparation.Eco-Friendly and Reusable
Ground screws are removable and reusable, making them a sustainable choice. This also makes project decommissioning or relocation easier compared to concrete foundations.Adaptability

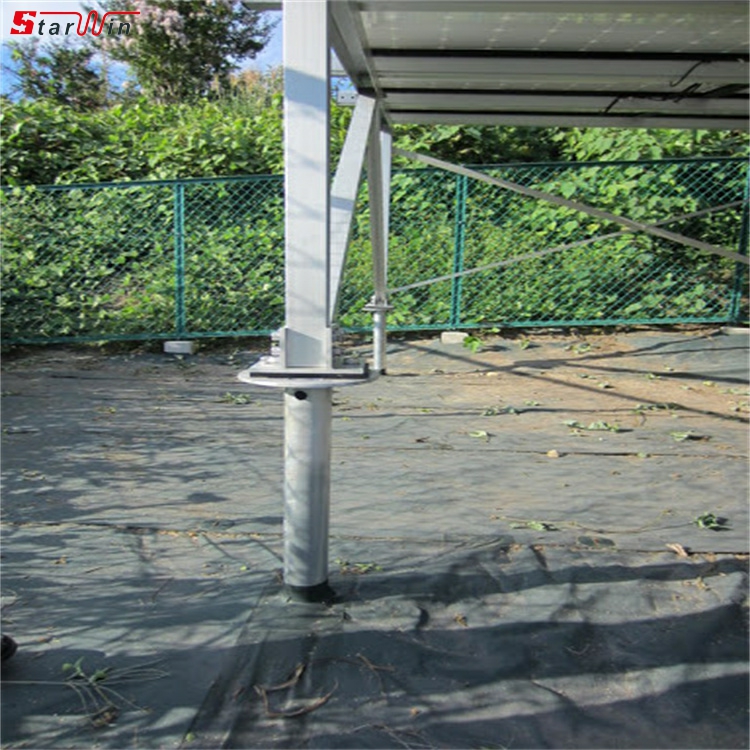

Compatible with various mounting structures such as aluminum or steel racking systems. The screw top can be customized (flange, U-type, or threaded) to suit different frame connections.

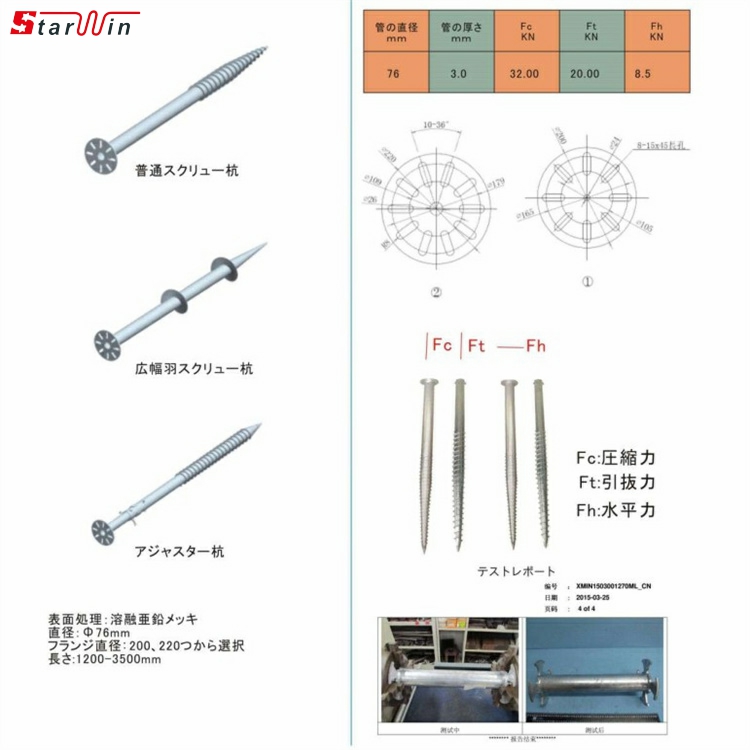

Types of PV Ground Screws
Flange Type Ground Screw
Features a flat plate at the top with bolt holes, ideal for connecting with racking base plates.U-Type Ground Screw
Has a U-shaped bracket on top for holding square or round posts directly.Helical Blade Ground Screw
Designed with one or more spiral blades to improve grip and pull-out resistance in loose or soft soils.Adjustable Head Ground Screw
Offers adjustable tilt or height features, ideal for sloped terrains or uneven land surfaces.
Applications in Solar Projects
Utility-scale solar farms
Distributed solar systems
Agriculture + solar (agrivoltaic systems)
Temporary solar setups (e.g., disaster relief or event-based installations)
Sloped or environmentally sensitive areas
Advantages Over Concrete Foundations
| Feature | Ground Screws | Concrete Foundations |
|---|---|---|
| Installation Time | Very fast (minutes/screw) | Slow (curing time required) |
| Environmental Impact | Minimal | Higher (soil disruption, cement use) |
| Reusability | Yes | No |
| Cost-Effectiveness | High (lower labor/machinery) | Variable (more labor-intensive) |
| All-Weather Use | Yes | Limited |
Conclusion
PV ground screws are a practical and forward-thinking solution for modern solar ground mount systems. Their ability to provide robust anchoring without the drawbacks of concrete makes them especially attractive for developers looking to speed up installation, reduce environmental impact, and ensure long-term stability. With the increasing scale of solar projects, ground screws have become a critical component in making solar more affordable and accessible worldwide.
