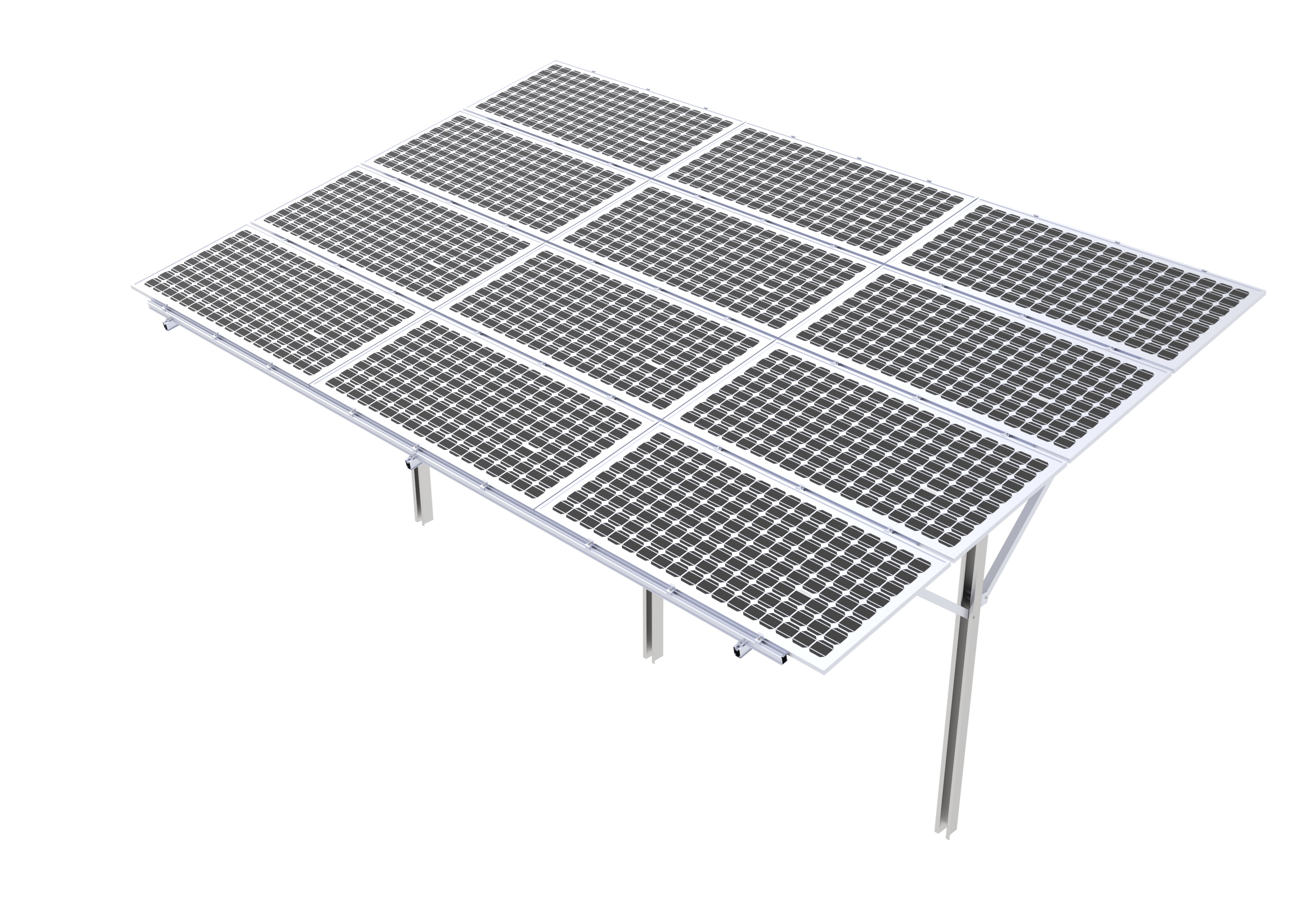

Single pole aluminum solar mounting racks are a specialized type of solar support structure designed for small- to medium-scale PV installations, offering a balance between strength, durability, and efficient land usage. Unlike traditional multi-pole or ground-mounted systems that require several supporting legs, single pole systems rely on one central column to hold the solar array, making them highly space-saving and visually neat. Here’s a more detailed overview:
1. Design Concept

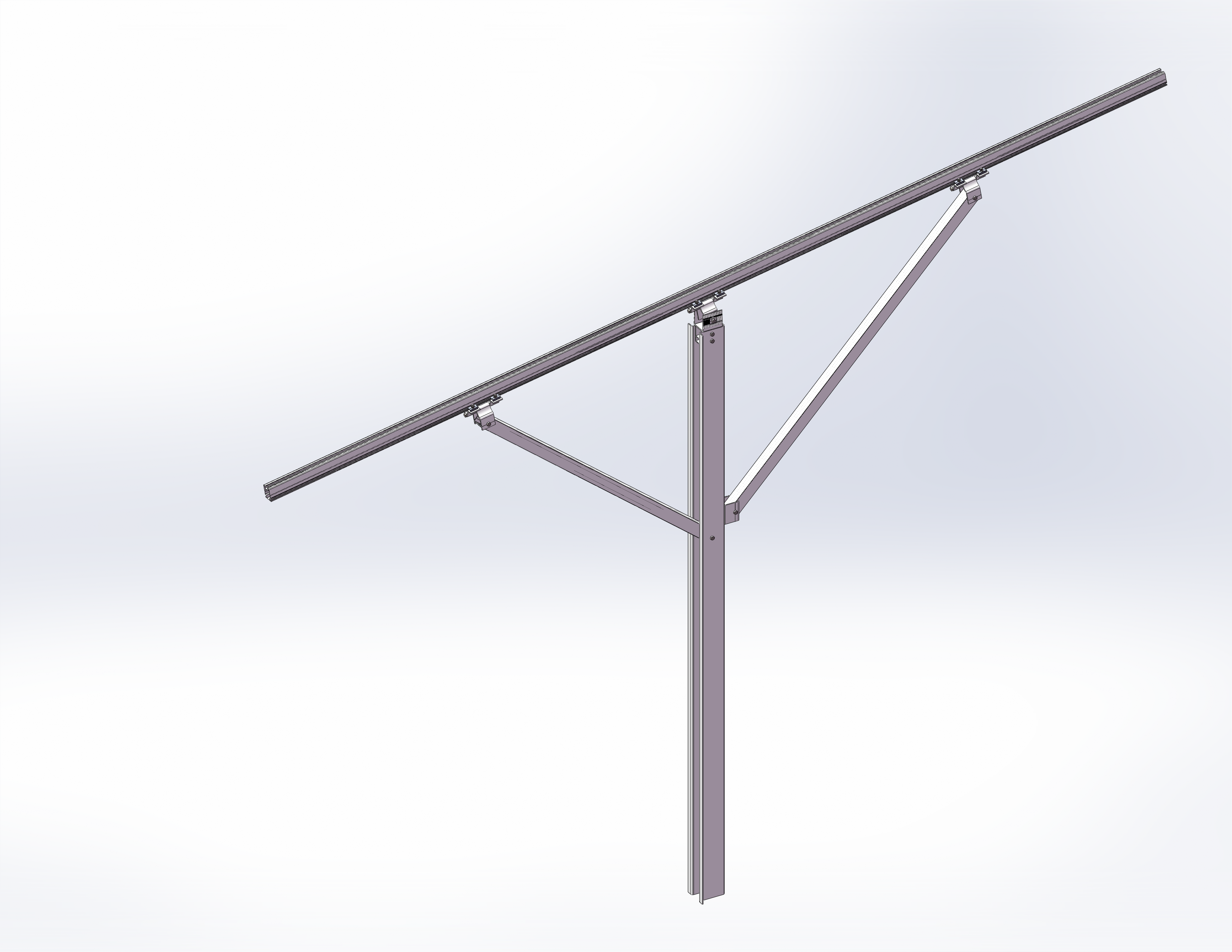

Centralized Support: A single vertical aluminum pole serves as the foundation, supporting the horizontal beams and rails where the solar panels are mounted.
Tilt Adjustability: Many designs allow angle adjustments (fixed tilt or seasonal adjustable) to optimize solar energy capture.
Compact Layout: With fewer ground penetrations, these racks minimize disturbance to the land and reduce civil engineering work.
2. Key Features
Lightweight but Strong: Made of high-grade anodized aluminum (typically AL6005-T5), which offers an excellent balance of light weight and structural integrity.
Corrosion Resistance: Aluminum provides long-term resistance to rust and weathering, making it ideal for outdoor environments.
Ease of Installation: Fewer parts and only one foundation per rack significantly reduce installation time and labor costs.
Single & Double Panel Options: Can hold one or multiple rows of panels, depending on the project requirements.
3. Applications
Rural and Agricultural Land: Perfect for farms where minimal land obstruction is needed, as the elevated design allows farming activities or livestock movement below.
Parking & Shade Structures: Works well in small carports or solar shading systems with limited space.
Off-Grid & Remote Areas: Ideal for telecom towers, water pumping systems, or standalone solar projects.
4. Advantages
Reduced Land Usage: Since each rack only requires one pole, it leaves more ground free for other uses.
Cost Efficiency: Saves on materials, concrete, and installation labor compared to multi-leg ground mounts.
Flexibility: Can be designed for portrait or landscape module orientation, single or double-sided installation.
Aesthetic & Clean Look: Minimalistic structure with fewer visible supports.
5. Foundation Options
Concrete Base: Traditional reinforced concrete footing for maximum stability.
Ground Screws or Pile Driving: Faster and eco-friendlier installation, reducing concrete usage and making relocation easier.
6. Technical Considerations
Wind Load Resistance: The single pole design requires careful engineering to withstand wind uplift and lateral forces.
Height Customization: Pole height can be customized for clearance, shading purposes, or terrain adaptation.
Row Spacing: Proper spacing must be considered to avoid shading between arrays.
✅ In summary: Single pole aluminum solar mounting racks are an innovative and cost-effective solution where minimal land disturbance, easy installation, and flexibility are required. They are especially popular in agricultural PV projects, shading applications, and standalone solar systems.
